How To Make a Headboard for a King Size Bed: 7-Step DIY Guide

A king headboard is one of the most satisfying beginner woodworking projects: it is mostly straight cuts, it uses inexpensive materials, and it changes the whole look of a bedroom. The trick is getting the size and the mounting right, because a king bed is wide enough that a flimsy panel will flex and rattle. This guide walks you through a sturdy plywood-and-plank design you can adapt to rustic, modern or painted styles.

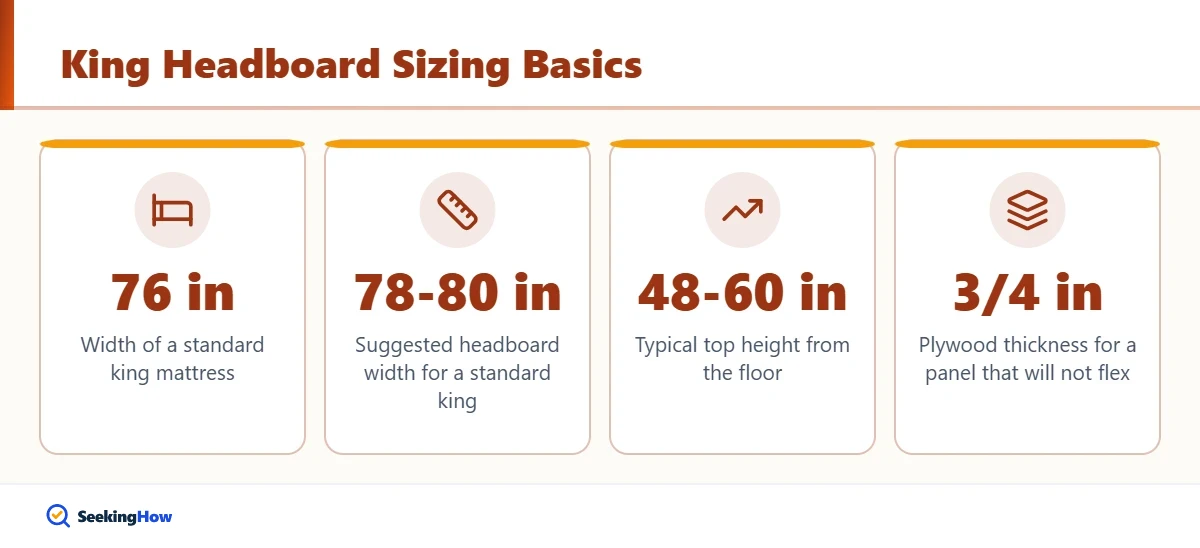

What Size Should a King Headboard Be?

Start with the mattress, not the bed frame. A standard (Eastern) king mattress measures 76 by 80 inches, while a California king measures 72 by 84 inches. Measure your actual mattress with a tape measure, because foam and pillow-top models can be an inch or so wider than the nominal size.

For width, add 2 to 4 inches to the mattress width so the headboard overhangs about 1 to 2 inches on each side. That gives you roughly 78 to 80 inches for a standard king and 74 to 76 inches for a California king. If you want nightstands to tuck under a wider wing-style design, you can go wider, but measure the wall space first.

For height, think about the visible portion above the mattress. Most people like 24 to 30 inches of headboard showing above the mattress top, which usually puts the top edge 48 to 60 inches off the floor. Taller statement headboards of 60 to 70 inches work in rooms with high ceilings.

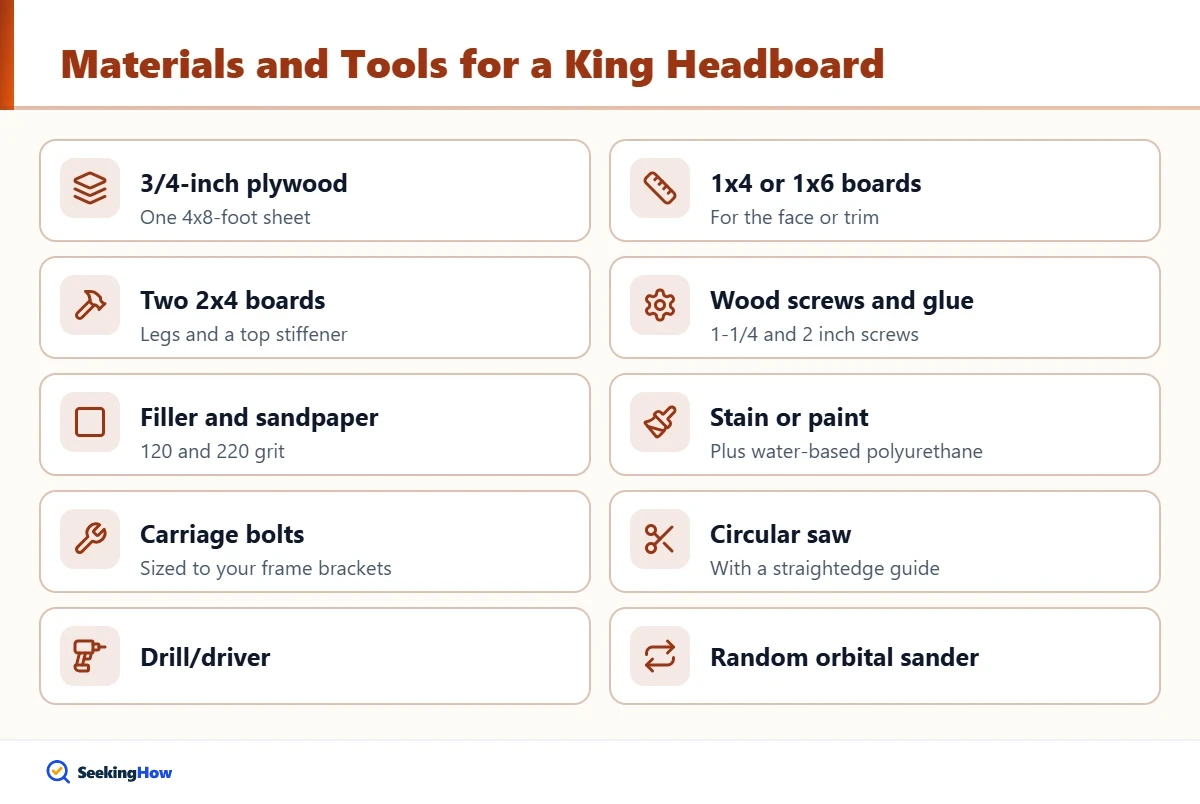

What Materials and Tools Do You Need?

This design uses a plywood backer panel for strength, faced with boards for looks, and two 2×4 legs that bolt to the bed frame. You can skip the face boards and paint the plywood if you want a clean, modern look.

Materials

• One 4×8-foot sheet of 3/4-inch plywood (sanded birch or cabinet-grade looks best)
• 1×4 or 1×6 boards for the face or trim (about 6 to 8 boards, 8 feet long, depending on design)
• Two 2×4 boards, 8 feet long, for the legs and a top stiffener
• 1-1/4-inch wood screws and 2-inch wood screws
• Wood glue
• Wood filler, 120- and 220-grit sandpaper
• Stain, paint or a water-based polyurethane
• Carriage bolts or hex bolts with washers and nuts (usually 5/16 or 3/8 inch, sized to your frame brackets)

Tools

• Tape measure, pencil, carpenter square and level
• Circular saw with a straightedge guide, or a track saw
• Miter saw (helpful for face boards)
• Drill/driver with bits and a spade or brad-point bit for bolt holes
• Random orbital sander
• Clamps, safety glasses, hearing protection and a dust mask

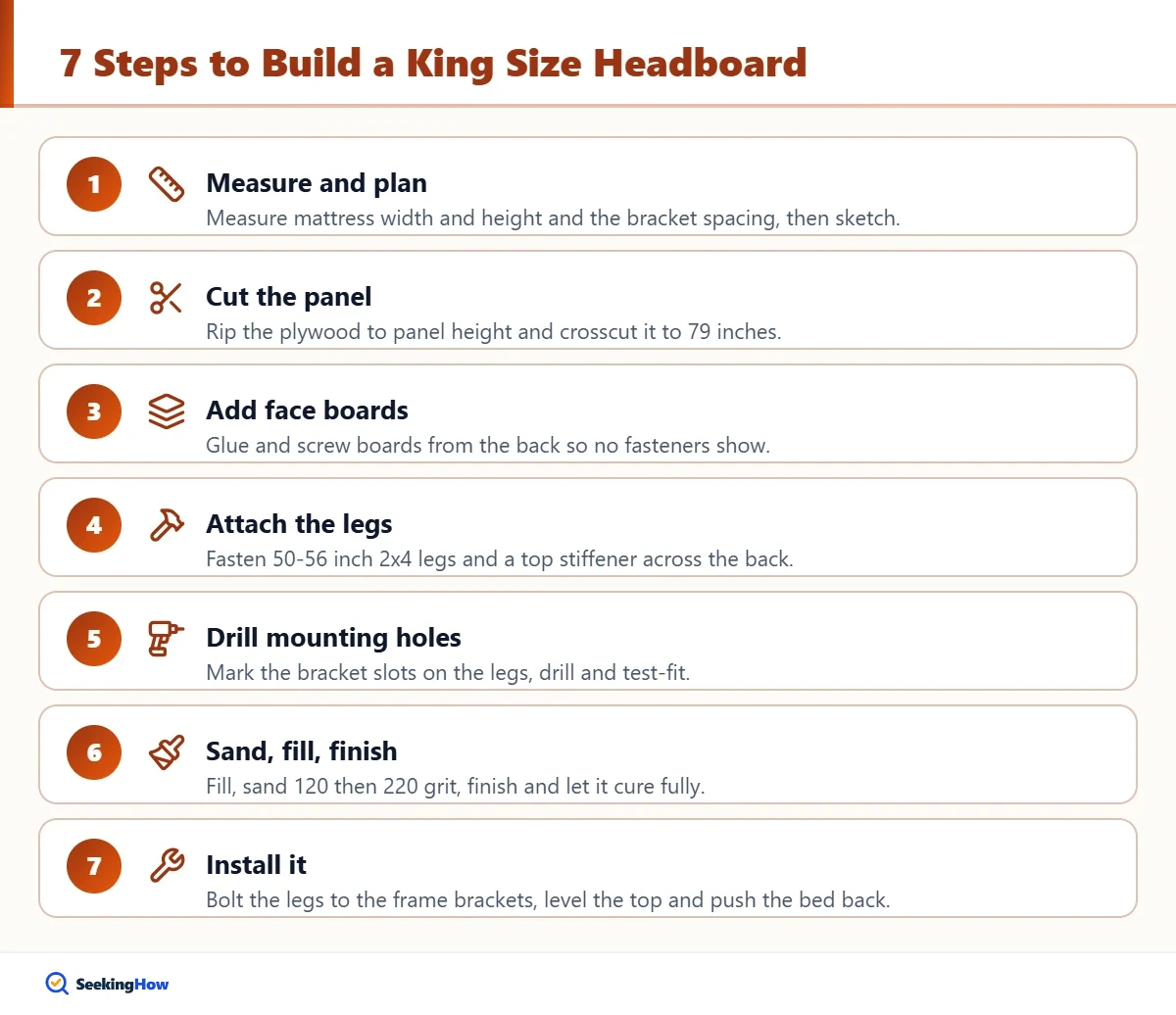

How To Make a Headboard for a King Size Bed

The steps below assume a 79-inch-wide panel for a standard king. Adjust the numbers for a California king or a custom width.

Step 1: Measure the Bed and Plan the Design

Measure the mattress width, the height from the floor to the top of the mattress, and the spacing between the headboard brackets on your bed frame. Sketch the headboard with the final width, panel height and leg length, and decide whether the legs will bolt to the frame or the panel will hang on the wall.

Step 2: Cut the Plywood Panel

Clamp a straightedge to the plywood and rip the sheet to the panel height, for example 30 inches, then crosscut it to 79 inches. Support both sides of the cut so the panel does not pinch the blade or splinter as it drops. Put the good face down when using a circular saw to reduce tear-out on the visible side.

Step 3: Add the Face Boards or Trim

Lay 1×4 or 1×6 boards across the panel horizontally, vertically or in a herringbone pattern, and trim them flush. Glue and screw them from the back of the plywood with 1-1/4-inch screws so no fasteners show on the front. For a simpler finish, frame just the edges with 1×2 or 1×3 trim to hide the plywood layers.

Step 4: Cut and Attach the Legs

Cut two 2×4 legs long enough to reach from the floor to the top of the panel, typically 50 to 56 inches. Position them on the back of the panel so they line up with your bed frame brackets, then glue and fasten them with 2-inch screws every 6 to 8 inches. Add a horizontal 2×4 stiffener across the back near the top to stop a long king panel from bowing.

Step 5: Drill the Mounting Holes

Set the headboard against the frame, mark where the bracket slots meet the legs, and drill clean holes slightly larger than your bolts. Most metal frames use two bolts per side; drill both so the headboard cannot pivot. Test-fit before you finish so you can fix any misalignment now.

Step 6: Sand, Fill and Finish

Fill screw holes and gaps with wood filler, sand with 120 grit then 220 grit, and wipe away the dust. Apply stain or paint followed by two coats of water-based polyurethane, which yellows less and dries faster than oil-based finishes. Let the finish cure for the time on the can, often several days, before bedding presses against it.

Step 7: Install the Headboard

Move the bed away from the wall, line up the legs with the frame brackets and slide the bolts through with a washer on each side. Tighten the nuts snugly, check that the top edge is level, then push the bed back into place. If the bed still rocks against the wall, add felt pads to the back of the legs.

How Do You Attach a Headboard Without Bed Frame Brackets?

Platform beds and some modern frames have no headboard bolts. In that case, the most secure option is a French cleat: two strips of 3/4-inch plywood or 1×4 ripped lengthwise at 45 degrees. Screw one strip to the wall into at least two studs with the bevel facing up and toward the wall, and screw the matching strip to the back of the headboard with the bevel facing down. The headboard then hooks onto the wall cleat and stays tight.

A freestanding option is to make the legs long enough to rest on the floor and add a bottom rail so the headboard stands on its own behind the bed. Our guide on making a headboard stand on its own covers that approach in detail. If your bed has a steel frame, see how to attach a headboard to a metal bed frame, and for solid wood beds read how to attach a headboard to a wooden bed frame.

Which Headboard Style Should You Build?

The same basic panel can take on very different looks. Choose based on your skills, budget and how much maintenance you want.

If you like to read or watch TV in bed, a cushioned version is far more comfortable. Our step-by-step guide to making a padded headboard uses the same plywood panel and shows how to add foam and fabric.

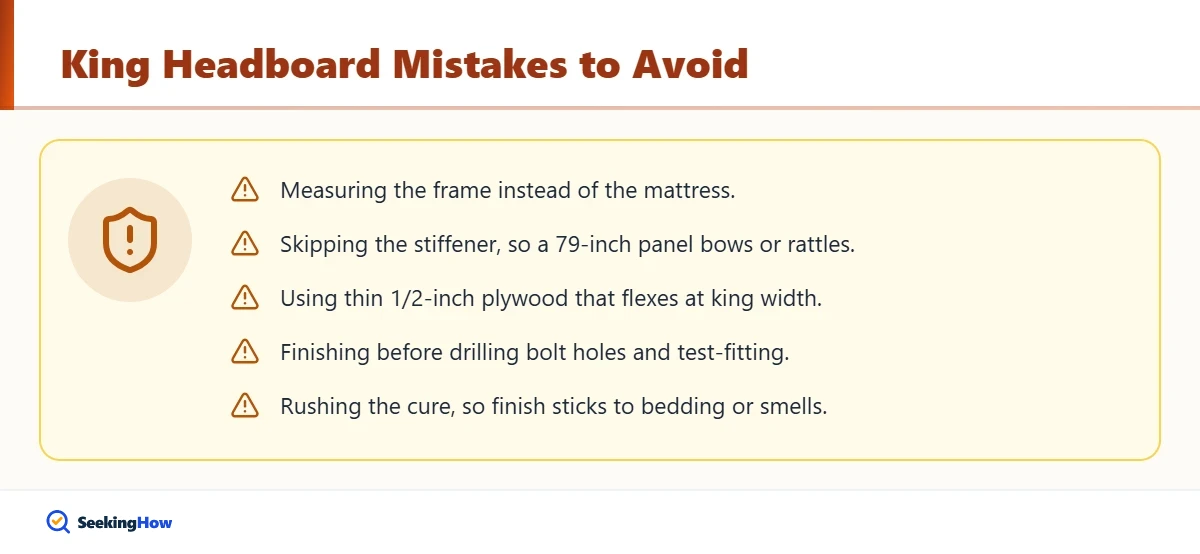

Common Mistakes To Avoid

• Measuring the frame instead of the mattress. Frames vary, but the mattress is what the headboard visually frames.
• Skipping the stiffener. A 79-inch panel can bow or rattle without a horizontal brace across the back.
• Using thin plywood. 1/2-inch sheets flex at king width; 3/4-inch is the safer choice.
• Finishing before test-fitting. Drill bolt holes and confirm alignment first so you do not damage the finish.
• Rushing the cure. Fresh finish can stick to pillows and sheets or transfer odor.

How Much Does a DIY King Headboard Cost?

Cost depends mostly on the plywood grade and the face material. A painted plywood headboard is usually the cheapest, while hardwood boards or designer upholstery fabric push the price up. Check current prices at your local home center, since lumber prices change often. Even with good materials, a DIY build typically costs well below a comparable store-bought king headboard, and you get an exact fit.

To save money, ask the store to make the long rip cuts on their panel saw, use reclaimed boards for the face, and buy a quart of finish rather than a gallon. If you also need a new foundation, our guide on making a box spring out of plywood pairs well with this project.
