Quick Answer
To fix a kitchen sink sprayer that won’t retract, look under the sink first. Most pull-down and pull-out sprayers stop retracting because the hose snags on stored items or valves, or because the counterweight slid out of place. Clear the cabinet, move the weight to the low point of the hose loop, and straighten kinks. It usually takes 10 to 15 minutes.
Key Takeaways
- A pull-down or pull-out sprayer retracts by gravity from a counterweight clipped to the hose under the sink.
- The counterweight should hang freely at the lowest point of the hose loop when the sprayer is docked.
- Stored cleaning products, shutoff valves, and garbage disposals are the most common snags.
- A twisted, kinked, or cracked hose drags in the spout and needs straightening or replacing.
- A sprayer that retracts but will not stay docked usually has a weak docking magnet or a worn dock.
A sprayer that hangs out of the spout is usually a mechanical snag rather than a broken faucet. This guide shows how to fix a kitchen sink sprayer that won’t retract by checking the counterweight, clearing the hose path, and spotting worn parts. You will need little more than a flashlight and a screwdriver.
What You’ll Need
- Flashlight or headlamp
- Phillips screwdriver (many counterweights use two screws)
- Towel to lie on and a small bin for stored items
- Replacement counterweight or a second clip-on weight (optional)
- Replacement pull-down hose from the faucet maker (optional, if kinked or cracked)
- Zip ties or adhesive cable clips (optional, to route the hose away from obstacles)

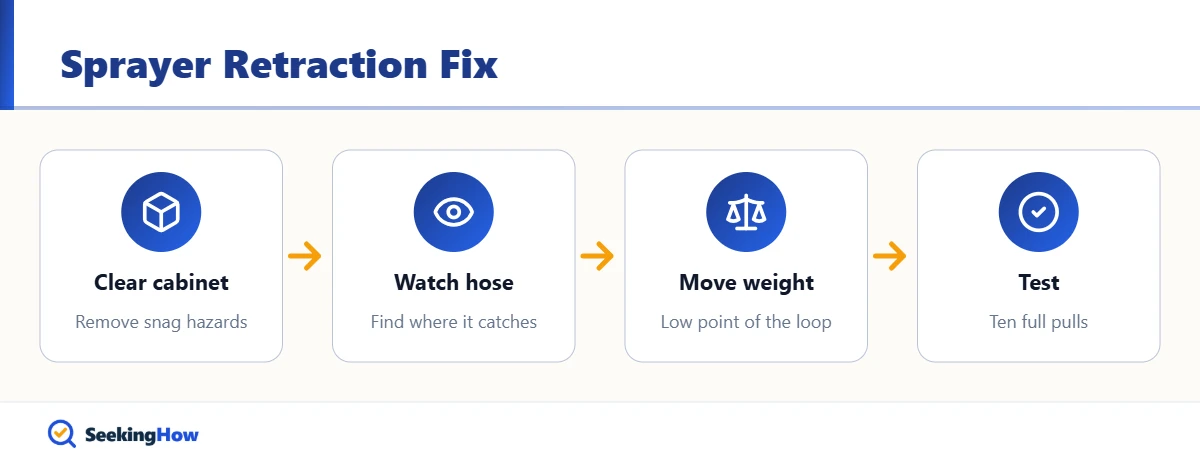

How To Fix a Kitchen Sink Sprayer That Won’t Retract: Step-by-Step
Step 1: Empty the Cabinet Under the Sink

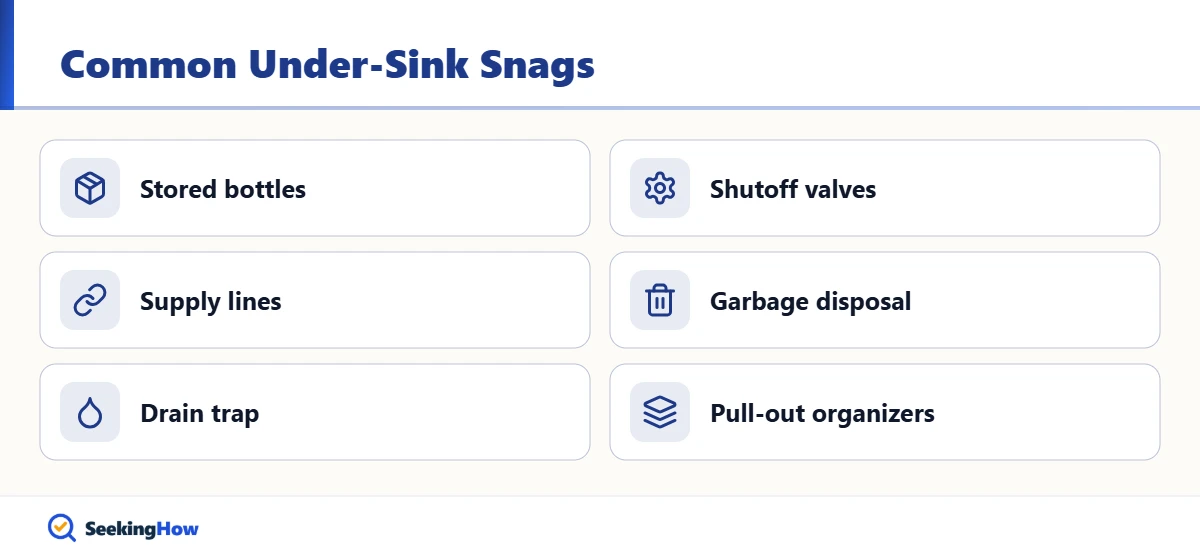

Remove everything stored under the sink so you can see the full hose loop. Cleaning bottles, trash cans, and pull-out organizers are the most common snags. In practice, roughly half of retraction problems are solved at this step.
Step 2: Pull the Sprayer Out and Watch the Hose
Have someone pull the sprayer out slowly while you watch below with a flashlight. Look for the hose catching on shutoff valves, supply lines, the garbage disposal, or the drain trap. Note exactly where it hangs up so you can reroute it.
Step 3: Reposition the Counterweight
With the sprayer docked, the counterweight should sit at the lowest point of the hose loop and hang freely without touching anything. Many hoses have a marker or band showing where the weight belongs. Loosen the screws or squeeze the clip, slide the weight into position, and retighten.
Step 4: Straighten Twists and Kinks
Disconnect nothing yet; simply run your hand along the hose and untwist it so it hangs in a smooth U. A twisted hose binds inside the spout neck and fights the counterweight. If you find a permanent kink, a crack, or a flattened section, replace the hose.
Step 5: Add Weight if the Hose Retracts Partway
If the sprayer moves back but stops a few inches short, add a second clip-on weight or a heavier replacement weight from the faucet maker. Long hoses and stiff braided hoses sometimes need more pull. Do not tape heavy objects to the hose; they can slip and damage it.
Step 6: Check the Spout and Docking Magnet
Pull the sprayer out and feel for drag at the spout opening; a damaged hose guide or debris there adds friction. If the sprayer retracts but sags or pops out of the dock, the docking magnet or dock clip is worn. Replacement docking parts are available from the faucet maker for many models.
Step 7: Route the Hose and Test
Use zip ties or adhesive clips to keep supply lines and cables away from the hose path, without fastening the hose itself. Test 10 full pulls. Most people find that once the weight hangs freely, the sprayer snaps back every time.
Bottom line: clear the cabinet and make sure the counterweight hangs freely at the bottom of the loop; replace the hose only if it is kinked or cracked.
If That Didn’t Work

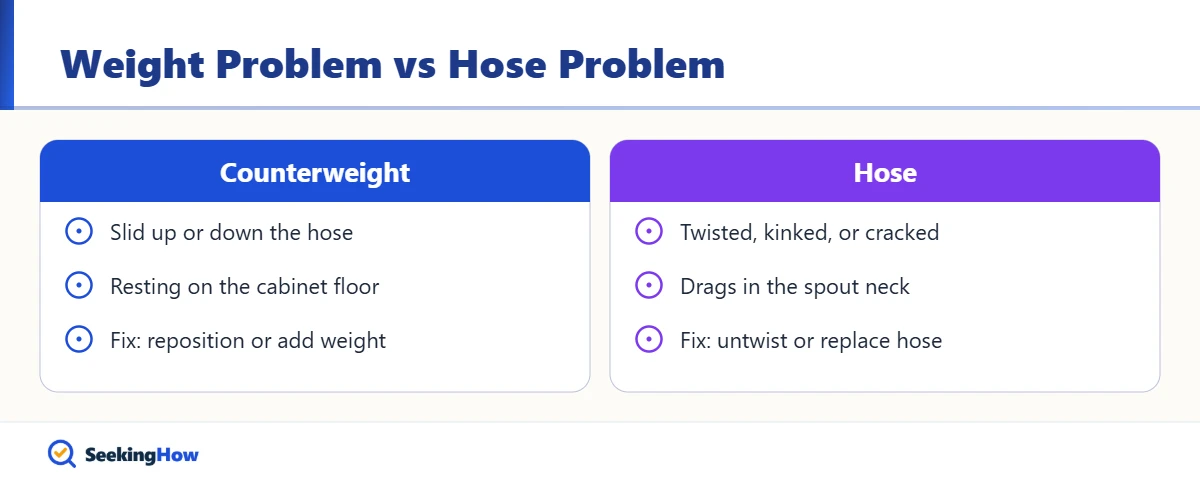

| Symptom | Cause | Fix |
|---|---|---|
| Sprayer stops halfway | Snag under sink or weight too light | Clear the path, add weight |
| Sprayer retracts slowly | Twisted hose or friction in spout | Untwist, check the hose guide |
| Sprayer will not stay docked | Worn magnet or dock clip | Replace docking parts |
| Weight keeps sliding | Loose clamp screws | Retighten or replace the weight |
| Hose leaks under the sink | Cracked hose or loose quick-connect | Replace the hose and reseat the fitting |
If the faucet is old and several parts are worn, it may be time to replace the kitchen faucet instead of repairing it piece by piece.

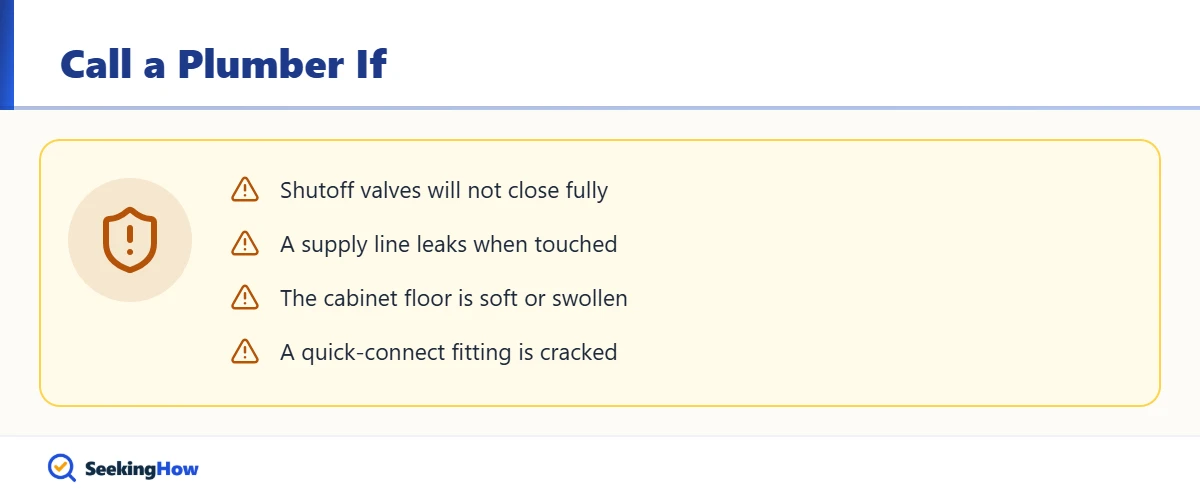

Safety and When To Call a Pro
Shut off both supply valves under the sink before disconnecting a hose, and keep a towel under quick-connect fittings. Call a plumber if the shutoff valves will not close fully, if a supply line leaks when touched, or if water damage has softened the cabinet floor. Never force a quick-connect fitting apart without pressing its release clip, or you can crack it.
Prevention Tips
- Keep stored items to the sides of the cabinet, away from the hose loop.
- Guide the sprayer back into the spout instead of letting it snap in from full extension.
- Check the counterweight position whenever you work under the sink.
- Do not use the sprayer hose to fill large containers at the far edge of its reach; that strains the hose. For bigger jobs, see how to connect a hose to a kitchen tap.
Related Guides
- How To Replace a Kitchen Faucet
- How To Connect a Hose to a Kitchen Tap
- How To Fix a Leaking PVC Joint Without Cutting
Sources
- Moen, pull-down kitchen faucet support (moen.com)
- Delta Faucet, kitchen faucet repair parts and guides (deltafaucet.com)
- Kohler, kitchen faucet care and installation guides (kohler.com)
Frequently Asked Questions
Where should the weight go on a pull-down faucet hose?
The weight on a pull-down faucet hose should sit at the lowest point of the hose loop when the sprayer is docked, hanging freely. Many hoses have a band or marking for it. If it rests on the cabinet floor or against a pipe, it cannot pull the sprayer back.
Why does my kitchen sprayer hose not go back in?
A kitchen sprayer hose does not go back in when it snags under the sink, when the counterweight has slipped, or when the hose is twisted or kinked. Watch the hose from below while someone pulls the sprayer to see exactly where it catches.
Can I buy a replacement counterweight for a kitchen faucet?
Yes, replacement counterweights are sold by most faucet makers and as universal clip-on weights. A part from the original brand fits the hose best. A universal weight works if it clamps firmly and does not slide.
How do I make my pull-down faucet retract better?
Clear everything from the hose path, place the weight at the bottom of the loop, untwist the hose, and add a little more weight if it still stops short. Guiding the sprayer back gently also reduces wear on the dock.
Why will my kitchen sprayer not stay docked?
A kitchen sprayer that will not stay docked usually has a weak docking magnet or a worn clip in the spout. Too much counterweight can also yank it past the dock. Check the faucet maker for a replacement docking kit for your model.
Can you replace just the hose on a pull-down kitchen faucet?
Yes, many pull-down kitchen faucets accept a replacement hose from the same maker. Shut off the water, disconnect the quick-connect under the sink, unscrew the spray head, and feed the new hose through the spout. Buy the hose that matches your faucet model number.
